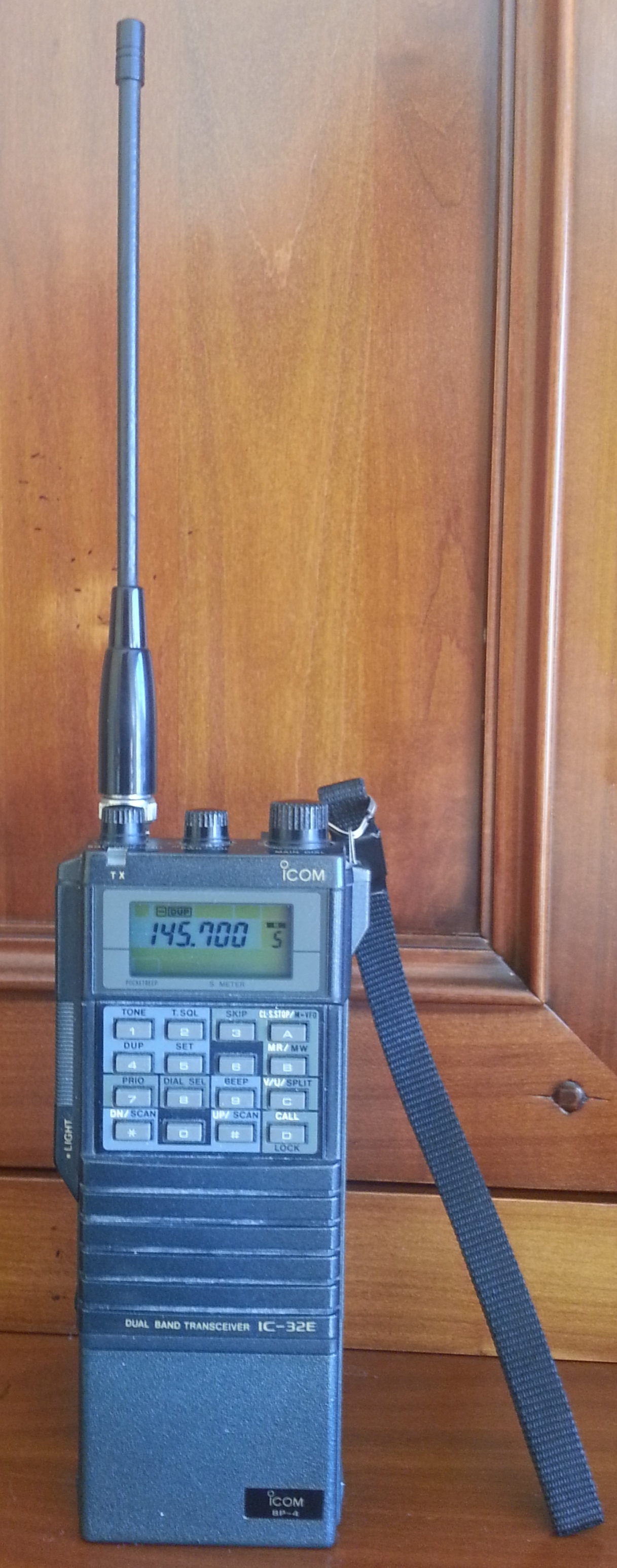

Type: |
Amateur VHF/UHF Transceiver
|
 |
| |
Frequency range: |
144-146 / 430-440 MHz
|
|
|
Mode:
|
F3 (FM NB)
|
|
|
Tuning steps IC32-E: |
12,5 or 25 kHz |
|
|
Transmitter |
|
|
|
RF Power, output:
(13,2 V DC)
|
|
VHF |
UHF |
|
| High |
5,5 W |
5,0 W |
|
| LOW |
1,0 W |
1,0 W |
|
|
| |
Max. frequency deviation: |
±5 kHz |
| |
Spurious emissions: |
< - 60 dB |
| |
Microphone impedance: |
2 kΩ |
| |
|
|
|
|
Receiver |
|
|
| |
Receiver system: |
Double-conversion superheterodyne |
 |
|
Intermediate
frequencies: |
1st 30.875 MHz
2nd 455 kHz |
|
|
Sensitivity:
|
< 0.25µV for 12 dB SINAD
|
|
|
Squelch sensitivity:
(threshold)
|
< 0.158µV
|
|
|
|
Selectivity:
|
|
|
|
|
Image rejection:
|
|
|
|
|
Spurious response rejection:
|
< -50 dB |
|
|
|
Audio output power: |
> 400 mW at 10 % distortion with an 8 Ω load |
|
|
|
Audio poutput impedance: |
8 Ω |
|
|
|
|
|
|
|
|
Voltage:
|
7.2-13.2 VDC battery pack or 12-15 VDC external, negative ground
|
|
|
|
Current drain:
(13,2 V DC)
|
RX/TX
|
Description |
VHF |
UHF |
|
|
|
|
|
|
Receive |
Power saved typical |
10 mA |
12 mA |
|
|
|
|
|
|
Max. audio output |
250 mA |
250 mA |
|
|
|
|
|
|
Transmit |
HIGH Power |
2.0 A |
2.2 A |
|
|
|
|
|
|
LOW Power |
900 mA |
1 A
|
|
|
|
|
|
RF Impedance:
|
50 Ohms, BNC
|
|
|
|
Usable temperature range |
-10 |
|
|
|
Dimensions (W*H*D):
|
65*159*35 mm (with BP-3)
|
|
|
|
Weight:
|
510 g (with BP-3)
|
|
|
|
Manufactured:
|
1988-19xx
|
|
|
|
Memories:
|
20
|
|
| |
|
|
|
| |
New price |
1988 in Amsterdam: ??? , 880-1000 DM (?)
|
|
| |
Serial Number |
04388 |
|
| |
|
|
|
|
|
|
|
| |
ICOM Global |
-->
User Manual IC32-E |
|
|
| |
ICOM Europe |
|
|
| |
ICOM USA |
---> Manuals, FAQ,
Service pack for IC32-AT/E |
|
| |
ICOM Japan |
---> Manuals |
|
| |
|
|
|
|

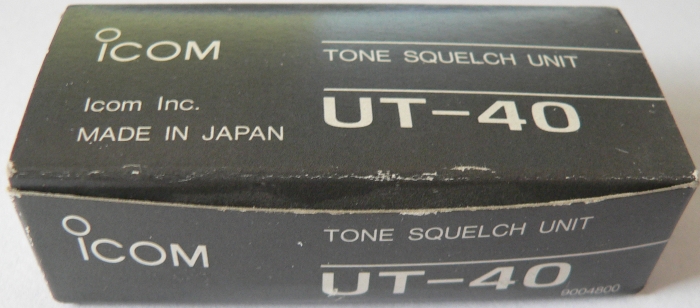

UT-40 |
CTCSS Continuous Tone Coded
Squelch System |
--->
PIEXX UT-40px |
|
| |
|
|
|
|
|
|
|
| |
ICOM HM-46 |
Speaker
Microphone, Lautsprechermikrofon |
Kombi-Stecker:
Rx Audio out: 3,5 mm Mono-Klinkenstecker ->
Lautsprecher
Tx Audio in: 2,5 mm Stereo-Klinkenstecker -> Mikrofon
-
Elektret-Kondensator-Mikrofon, rote Tx-LED für "On Air", 3,5 mm Klinkenbuchse für
Ohrhörer, etc. (Lautsprecher wird abgeschaltet), PTT Schalter |
HM-46 |
| |
|
|
|
|
| |
ICOM BC26E |
Ni-Cd Battery Charger, use only for BP-3, BP-21, BP-22 |
Input: 220 V AC, 50 Hz
Output: 8,4 V DC, 25 mA
DC-Kabel: Hohlstecker: 5,5 mm, Innen- 2,0 mm(2,07 mm), Länge
Steckerschaft: 9,91 mm, Länge des Kabels einschließlich
Stecker ca. 1,95 m, Minus-Pol Außen, Plus-Pol Innen |
|
| |
|
|
|
| |
ICOM BP-3 |
8,4 V, 270mAh
DC input 13,8 V DC, zum Aufladen des Akku-Satz
- Schaltung?
- war schon beim Kauf defekt, kalte Lötstelle? |
DL2AU's Akku-Reparatur des
BP-3
Service-Manual |
|
| |
|
|
|
| |
ICOM BP-4 |
Leergehäuse zur Aufnahme von 6*AA Akkus |
|
|
|
|
|
| |
ICOM FA-1443B |
ICOM VHF/UHF Antenne FA-1443B, Dual Band Antenna, 50 Ohm
BNC Plug(m), 2-m/70-cm-Band, 112 mm Länge |
"Gummiwendel-Antenne" |
| |
|
|
|
| |
Manual |
--->
Service Manual IC-32 |
|
| |
|
|
|
|
Foren |
ICOM
Radio Club AT |
|
| |
|
YAHOO Groups
IC-32AT · Icom
2m/70cm handheld transceiver
|
|
| |
Hints |
|
|
| |
|

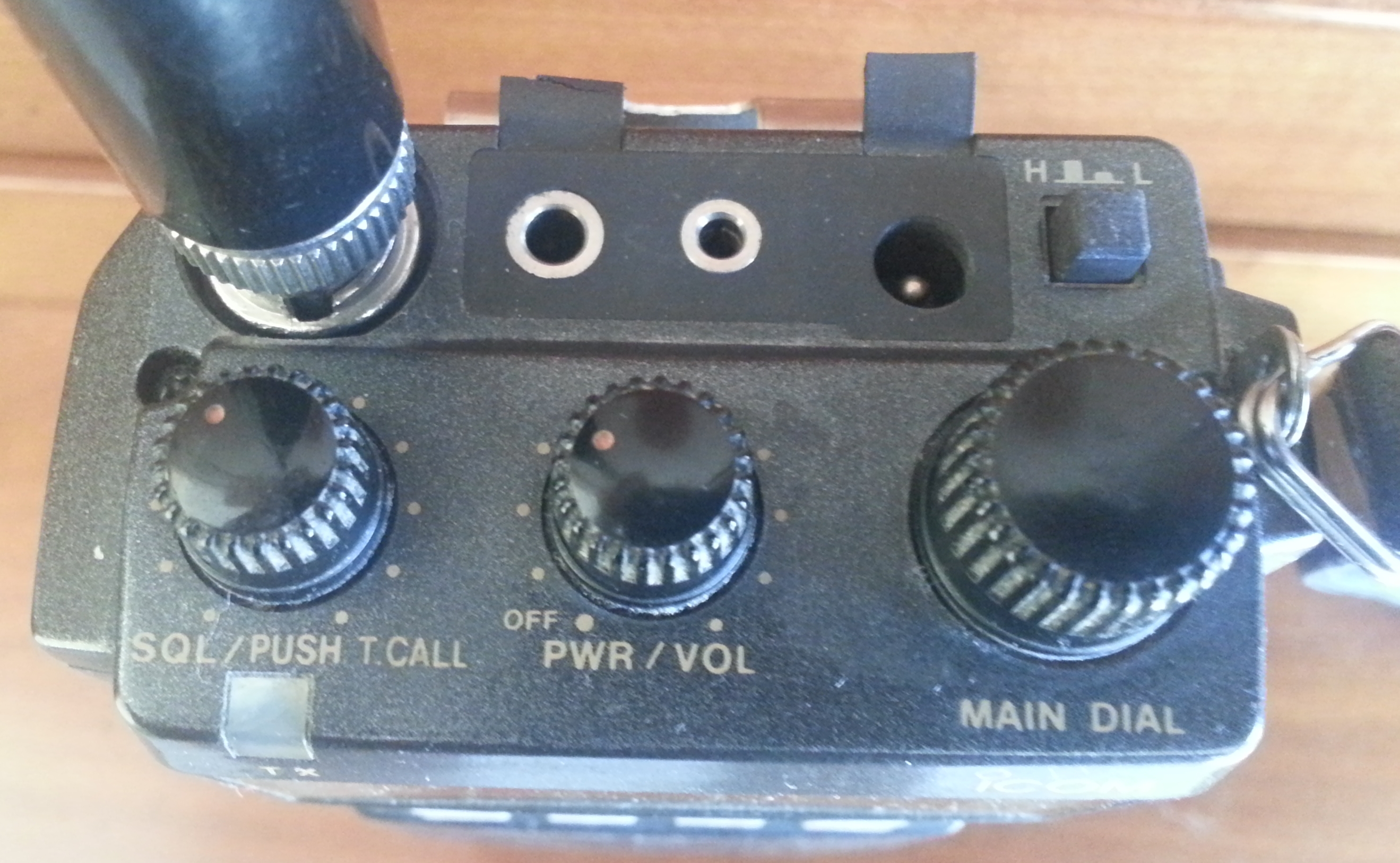

Display Test: Funktions-Taste + 2 drücken und dann Gerät einschalten |
|
| |
|
|
|
|
Modifications |
|
|
| |
|
www.mods.dk |
|
| |
|
http://hamradio.online.ru/ftp3/All_ICOM_mods_from_mods_dk_in_ONE_file.pdf |
|
| |
|
|
|
| |
|
www.ir3ip.net/projects/icom/ |
|
| |
|
|
|
| |
Packet Radio |

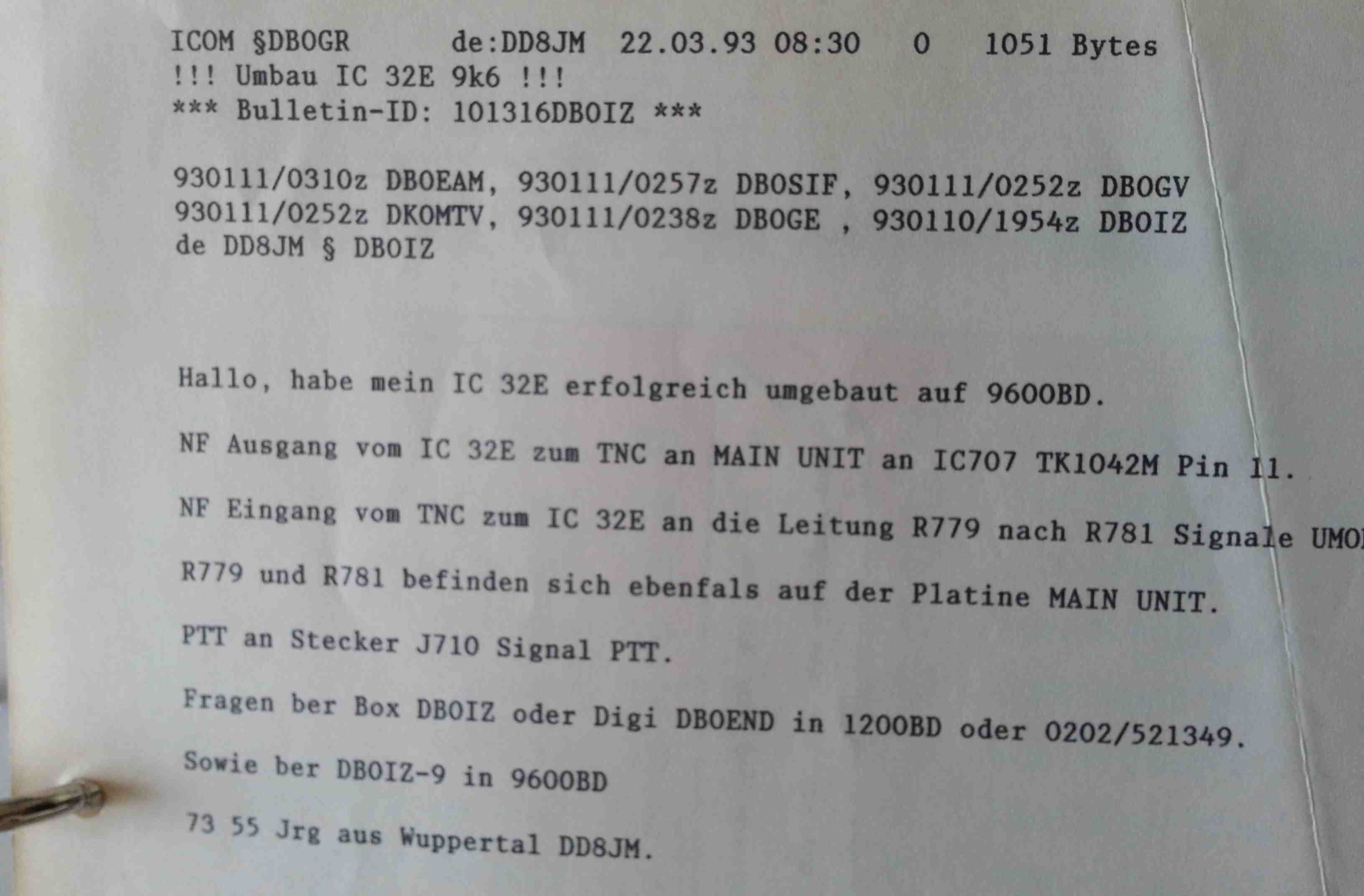

Erweiterung 9,6 k by DD8JM
-
Kabeldurchführung: obere Gummiabdeckung
(Headset-Speaker/Mike-Anschluß)
anheben |
 |
| |
|
Umbauanleitung für Funkgeräte
9600 Baud FSK |
|
| |
|
|
|
| |
|
Modifikation
des Frequenzbereiches by DF2UZ |
|
| |
|
|
|
| |
|
|
|
| |

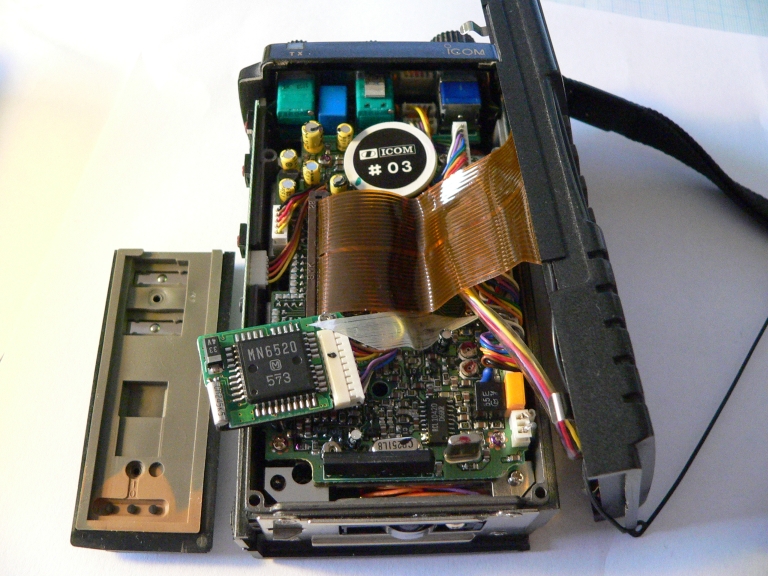

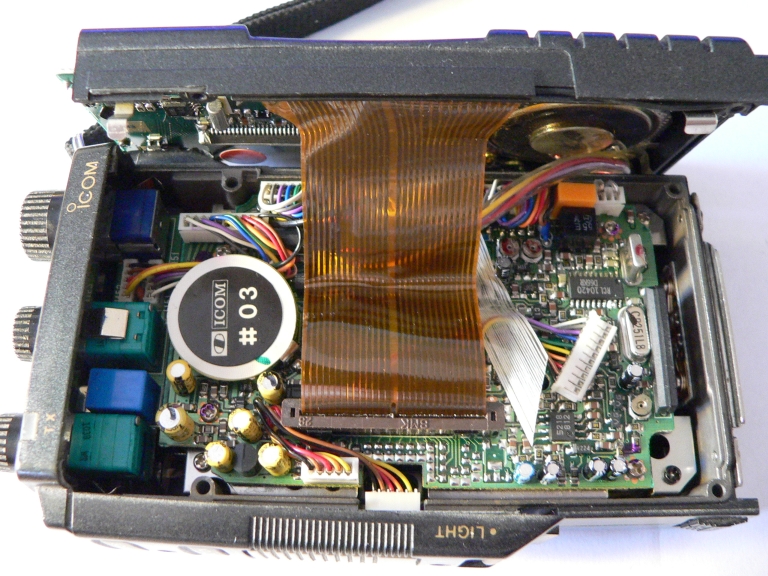

UT-40 Einbau
|

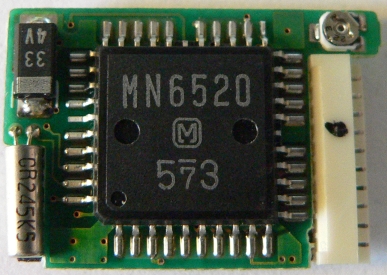

UT-40 Tone Squelch Unit |
|
| |
|
|
MN6520
http://forums.qrz.com/index.php?attachments/image-jpg.176803/ |
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Usage |
IC-32AT
used for APRS by
ZL1ABS |
|
| |
|
|
|
| |
|
ICOM Crossband Repeater Information
|
|
| |
Spares |
|
|
| |
|
THIECOM Bremen, Loudspeaker
Microphone HM-46
--->
Informationen |
Bremen |
| |
|
|
|
| |
|
Piexx
Company, ICOM IC-32E-> "UT40" |
USA |
| |
|
Point electronics |
Wien, Österreich |
| |
|
BP-3i: 8.4v 350mAh Ni-Cd battery insert for ICOM BP-3 CM-3
auch 700mAh Version angeboten |
|
| |
|
|
|
| |
Repair |
DC-Buchse defekt J201 Ext DC Supply, RF Unit, Connector
HEC0779-01-030
->
http://icomamerica.com/en/governmentsales/contracts/gsa/GS-35F-0109L-ITS-Pricelist-April-2014.pdf |
|
| |
|
Ersatz für
Einbaukupplung ?
|
|
| |
|
|
|
| |
Infos |
|
|
| |
|
http://www.repeater-builder.com/icom/icom-index.html |
|
| |
|
|
|
|
Projects |
|
|
| |
|
Schaltbild BP-3 |
|
| |
|
http://www.repeater-builder.com/icom/pix/icom-cm8.gif
-
http://www.repeater-builder.com/icom/icom-index.html
|
|
| |
|
|
|
| |
|
Icom IC-2AT Battery Eliminator
- BP 3 replaced Ni-Cd-accus |
|
| |
|
Convert ICOM BP3 battery pack from NiCad to NiMh by
eham.net |
|
| |
|
|
|
| |
|
Project IC32 Remote Control
Was ist ohne
Geräteeingriff möglich?
- DC on/off, Zeitbegrenzung, NOT-AUS nach
bestimmter Zeit
- Audio in/out
- PTT -> VOX gesteuert durch
Audiosignal Mic
- Rufton --1750 Hz Generator über Audio Mic
DD8JM Remote Control via TeamViewer für IC7000
TeamViewer |
|
| |
|
|
|
| |
|
Nutzung, Kopplung Echolink |
|
| |
|
Duplex-144-432 MHz, Home Repeater |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
