WB Operation
	DVB  Digital Video Broadcasting DVB-S: DVB System for satellite broadcasting DVB-S2: second generation DVB System for satellite broadcasting and unicasting DVB-S2  - Standards  - Implementation Guidelines  - DVB-S2 Factsheet
	DVB-S2 Bake QO-100 - QRG: 10492,50 MHz (Mittenfrequenz des Signals) - Polarization: horizontal - Modulation: DVB-S2, QPSK - Symbolrate 2 MSymbol/s - FEC: 2/3 - Rolloff: 0,2 - Empfangsantenne, Spiegel - LNB - Demodulator - Nachweis des Signals mit RTL-SDR (LNB-LO:9750 MHz, Rx-IF: 742,5 MHz) - Einstellungen am RTLSDR	Nutzung AMSAT-DL-Empfangsmischer LNB: LO= 9750 MHz 742,5 + 595 MHz-> 1337,5 MHz 10492,5-1337,5 MHz= 9155 MHz Achtung, Übersteuerung des RTLSDR vermeiden, Wasserfall gelb, 20-30 dB Dämpfung zwischen LNB und RTLSDR-Stick
	- QO-100 / Es'hail-2 Wideband Spectrum Monitor (batc.org.uk)
	- QRP LIMIT for VIDEO TRANSMISSION VIA QO-100 - Bandplan and Operating Guidelines - AMSAT Deutschland e.V. Forum
	- QO-100 DATV Empfang by AMSAT-DL
	- QO100 SSB Review und DATV-TRX Workshop by OE5RNL, Reinhold Autengrube
	- Receiving Oscar 100 DATV signals
	-  https://wiki.batc.org.uk/Es%27hail-2_DATV_Bandplan -  https://wiki.batc.org.uk/BATC_Wiki
	- https://www.agaf-ev.org/agaf-de/   - https://www.agaf.de/index.php/355-qo-100-teleport
	- Software-defined demodulation of Digital Amateur TV from QO-100
	- https://wiki.batc.org.uk/Receiving_Oscar_100_DATV_signals
	- Es’hail-2 - DATV Transponder
	- MinitiounerPro2	- MiniTiouner Hardware (F6DZP) im AMSAT-DL Forum - https://wiki.batc.org.uk/MiniTioune
	- https://www.r-e-f.org/images/Documents/Technique/minitiounerpro.pdf
	- DATV via QO-100 (rl.lu)
	- PA3FBX - BATC Live Streaming
	- QO-100 / Es'hail-2 Wideband Spectrum Monitor (batc.org.uk)
	- The DATV-Express Projects   - mehre technische Basis-Dokumente     - https://www.datv-express.com/uploads/TechTalk76-DATV.pdf - Hardware
	- MiniTiouner-Express DVB-S/S2 DATV RECEIVER   - MiniTiouner-Express Specifications
	- DATV-Express and MiniTiouner-Express Download Center   - MiniTiouner-Express User Guide for Windows - draft 16.pdf
	- ATV mit QO-100  FUNKAMATEUR 2019 H. 05 S.
	ATV
	- http://www.db1cc.de/amateurfunk/atv.html - http://antennen.biz/download/atv.pdf
	- ATV-RX.html

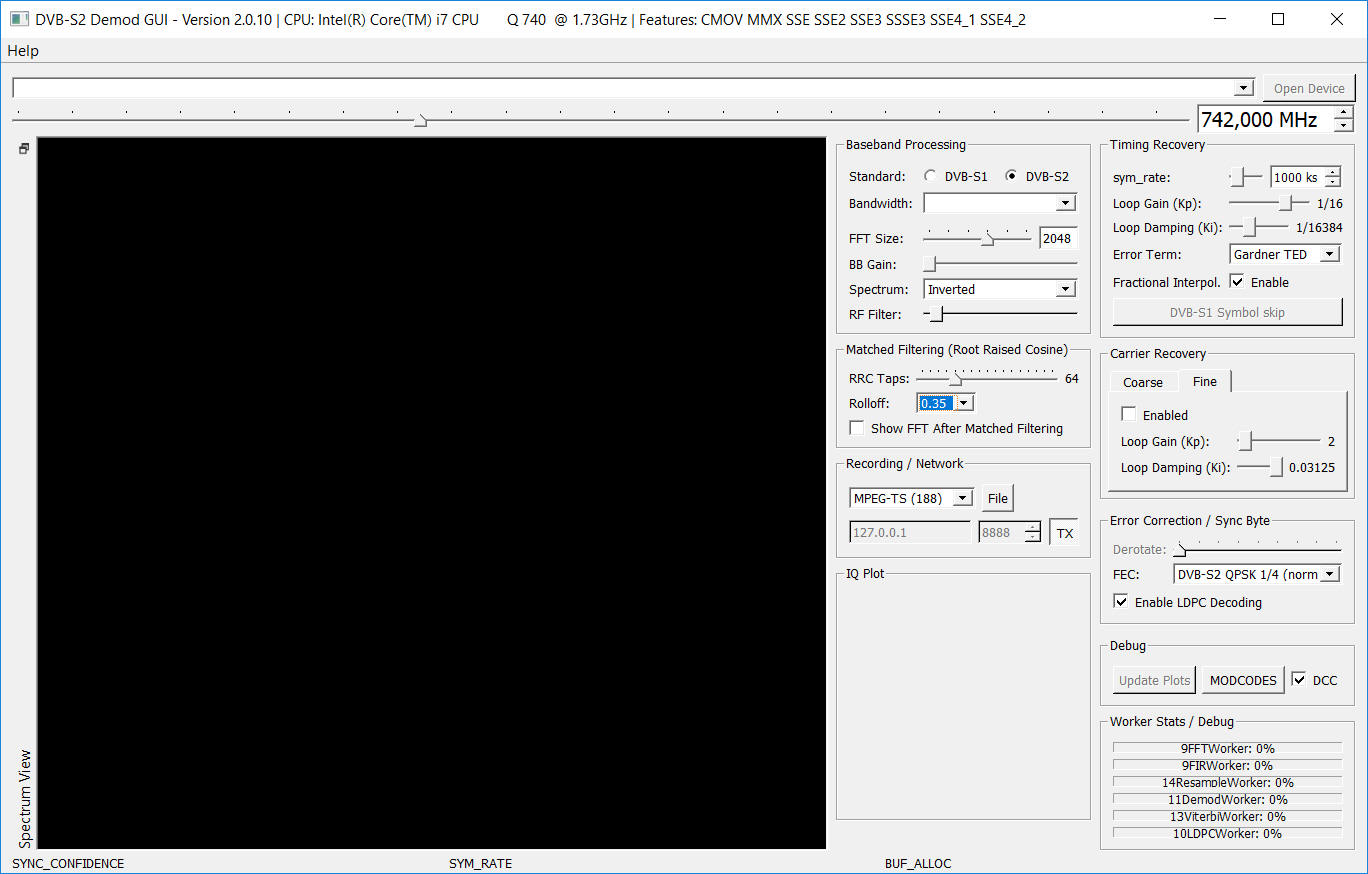

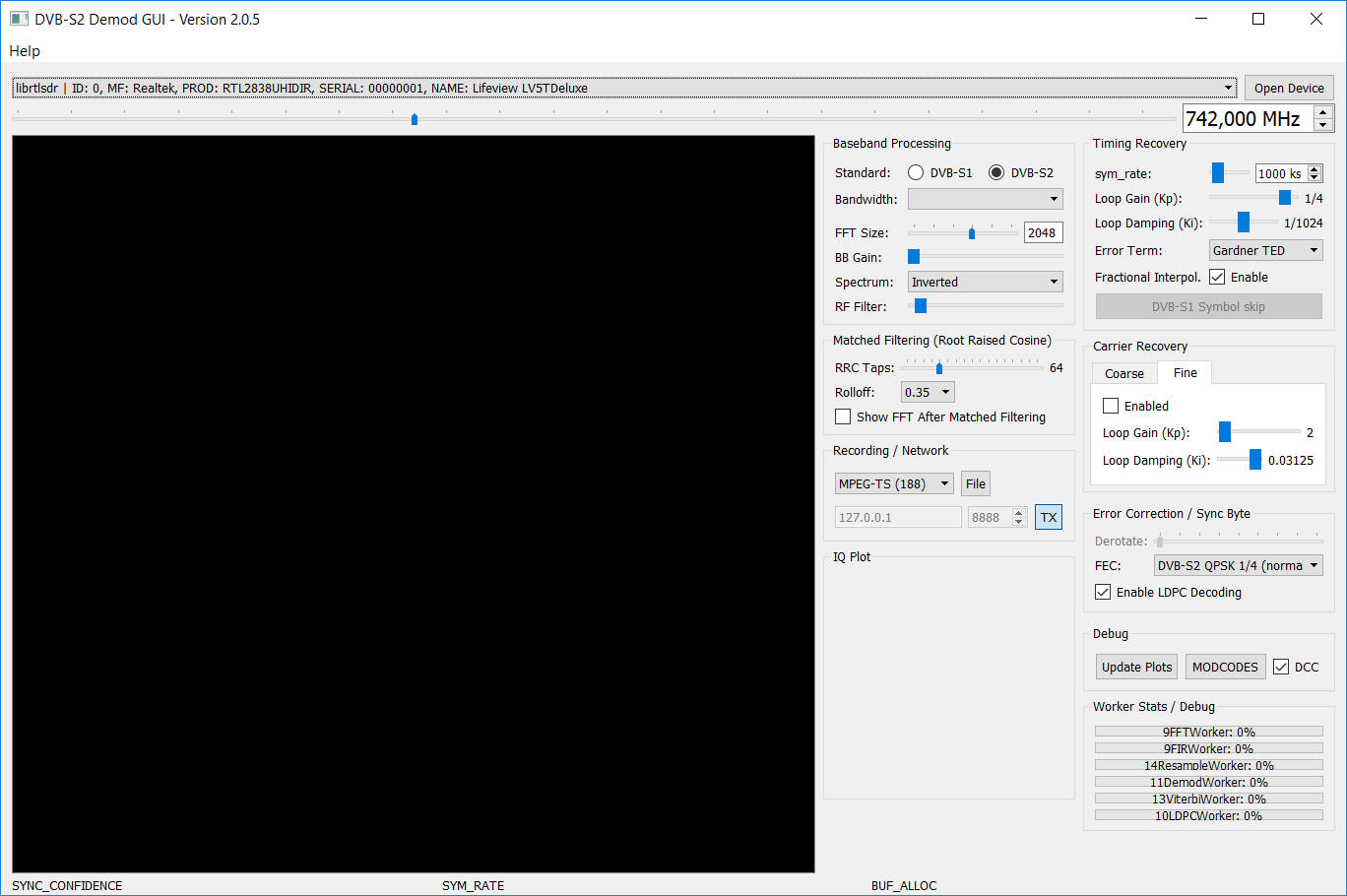

	DVB-S2 Demod GUI	15.04.2019, ...; mkn
	-https://forum.amsat-dl.org/index.php?thread/101-software-dvb-s-demodulator/&pageNo=1	SWL - markro92, Marcel Kröner
	- "This Software does only run on quite modern CPUs with SIMD instruction sets and AVX support. Should be Intel Haswell and above." - keine Angst mit der Weiterentwicklung der Software haben sich auch die Anforderungen an die CPU reduziert, also weiterlesen, hi. - Bin ich dabei?
	- https://de.wikipedia.org/wiki/Intel-Core-i-Serie ---> Instructions sets MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, VT-x

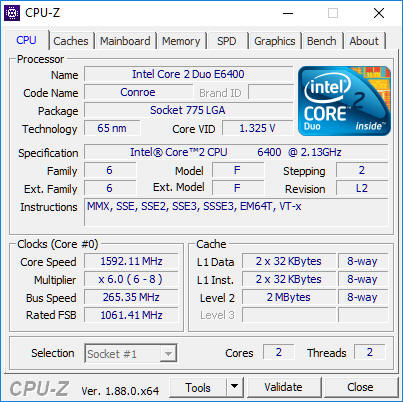

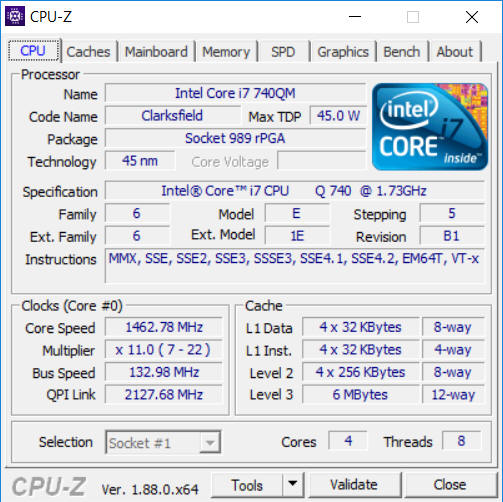

	Test der CPU, werden die Anforderungen erfüllt? - https://www.cpuid.com/softwares/cpu-z.html
	Weiterlesen im Forum hilft!
	- "The CPU on the .... screenshot supports SSE4.1 and SSE4.2 in the Instructions list, thats what my software needs as minimum currently." 15.04.2019	Good news, my "old" Laptop fullfills the minimum requirements!
		My configuration: - used laptop - Windows 10 Prof, 64 bit - RTL-SDR E4000 LNB: goobay®  , internal 25 MHz TCXO Dish: 60 cm, offset Feed: Dualband feed "POTY" Reception not tested 15.04.2016

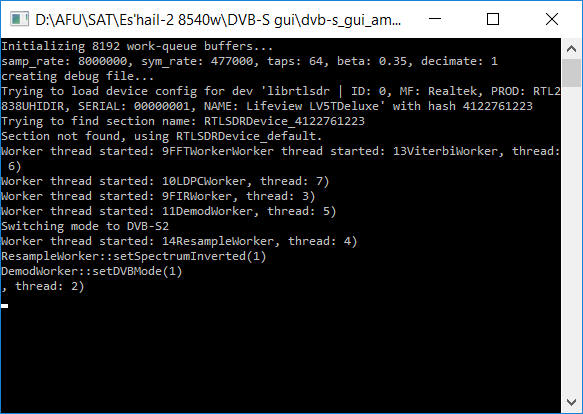

	- Open Device
		MPEG: Moving Pictures Experts Group MPEG-TS: MPEG-Transportstream FEC: Forward Error Correction MODCODES DCC LDPC: Low Density Parity Check (codes) QPSK: Quaternary Phase Shift Keying
	- Next: LNB DC feeding 13 V/18V

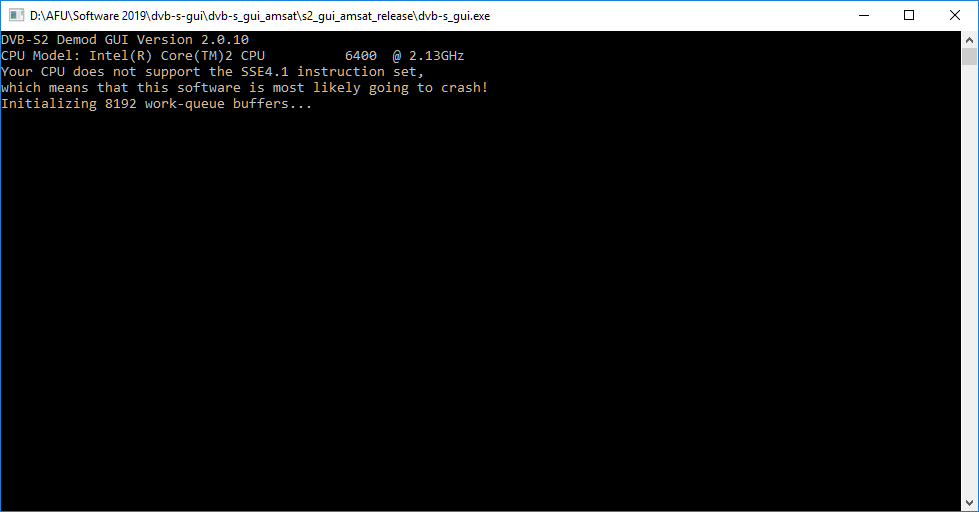

	- und der 745 ist "noch" nicht dabei, zu alt

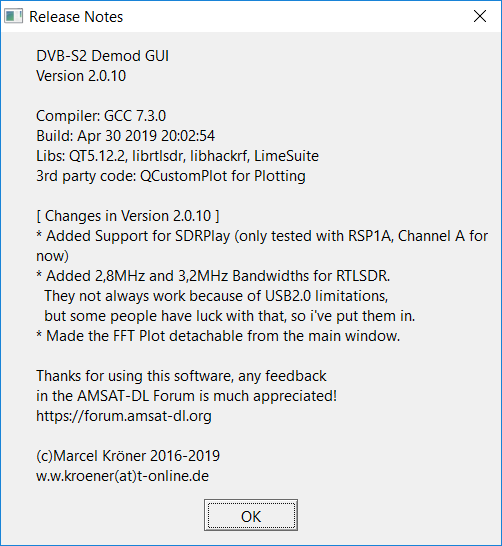

	Version 10
	---------------------------------------------------------------------
	- qo100-sdrangel-handbook.pdf (swissatv.ch)  QO-100 en DATV?... mais c’est très simple! by HB9AZN Pierre-André HB9DUG Michel février 2023

Edited on 07. April 2023.
